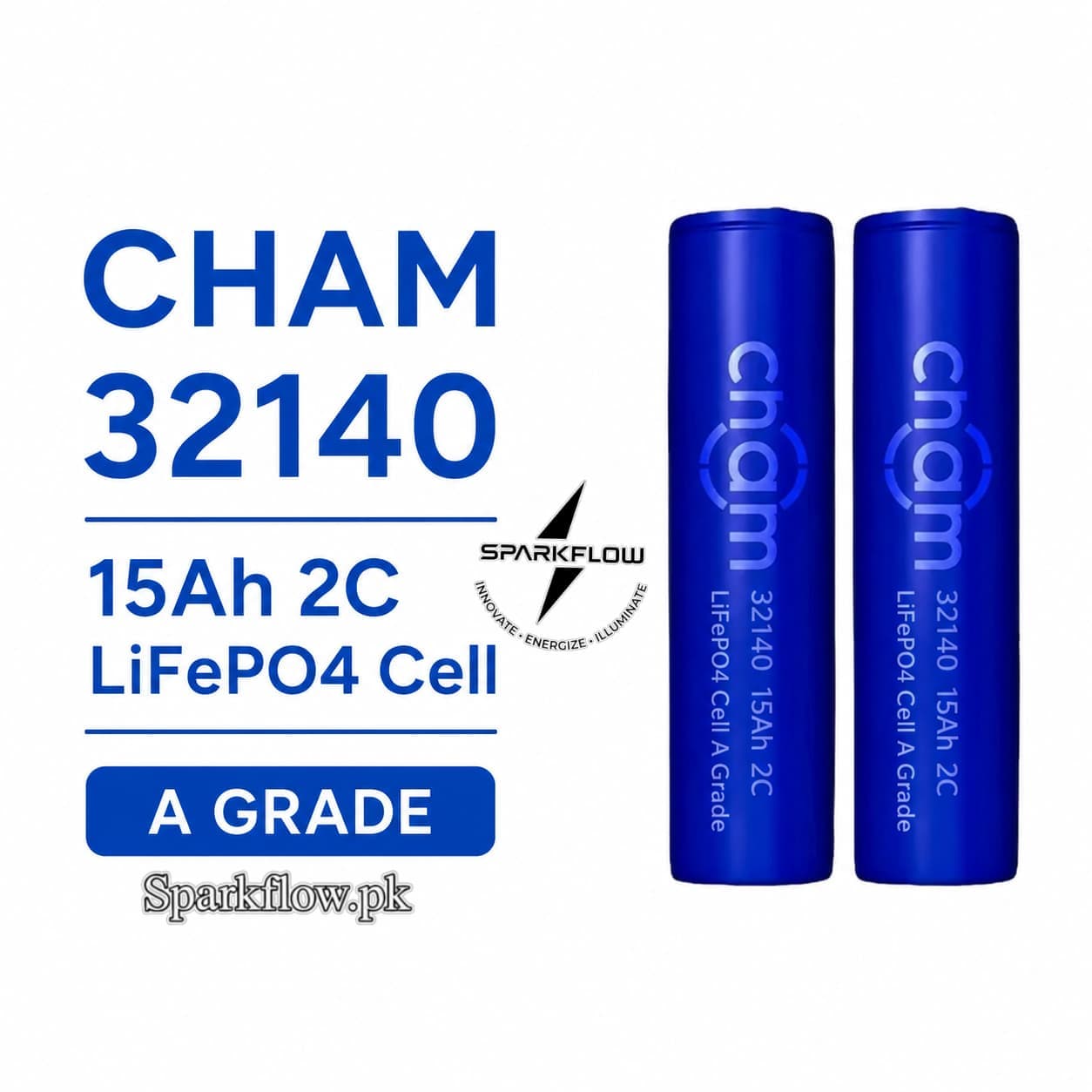

32140 15Ah lifepo4 3.2v cell 2C CHAM 32140 15ah A grade cell in pakistan

Description

High Capacity & Voltage: 3.2V nominal voltage with a 15Ah (15000mAh) capacity for extended energy storage.

Long Cycle Life: Over 2000 charge cycles, ensuring durability and cost-effectiveness.

Fast Charging & Discharging: Supports high charge/discharge rates for demanding applications.

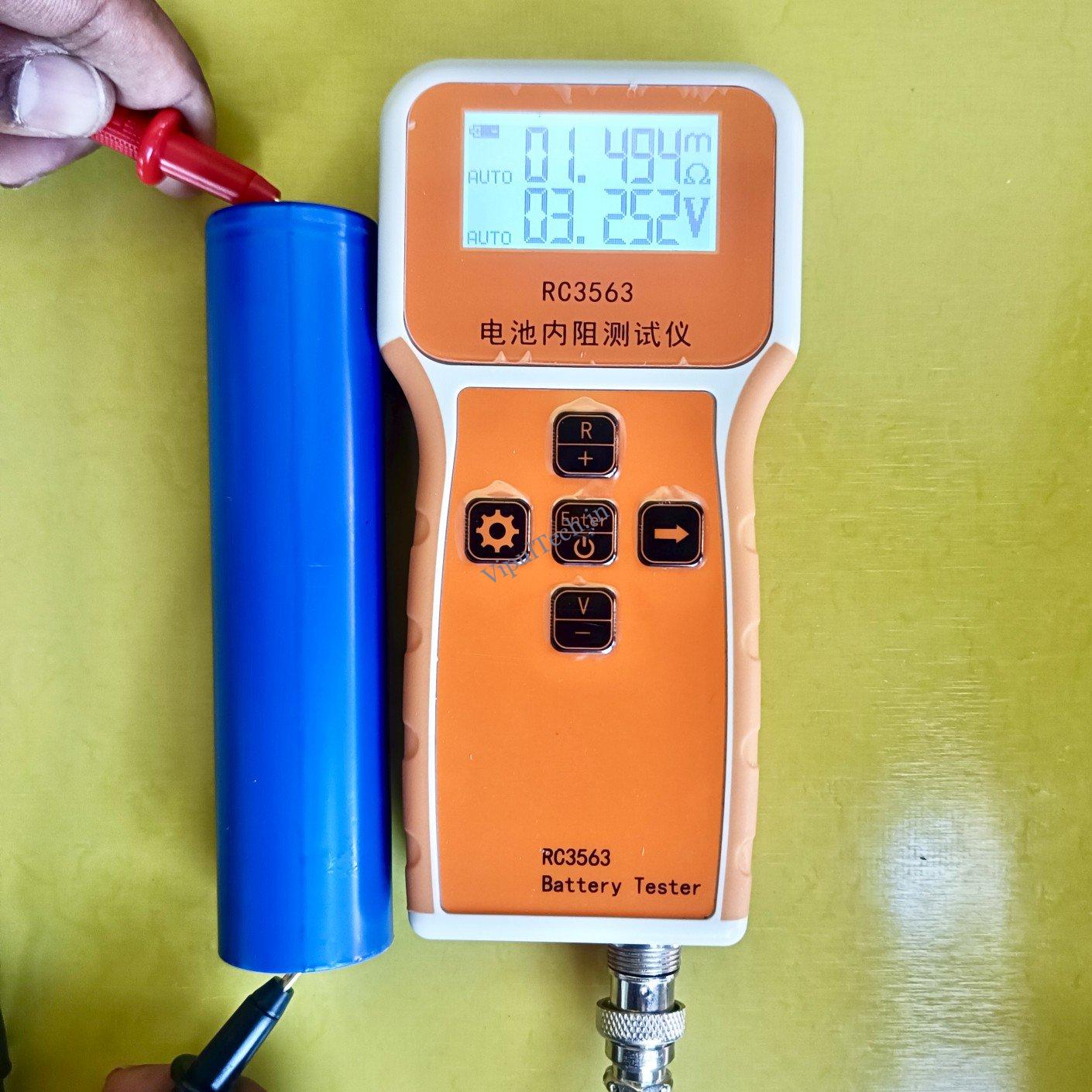

Stable Performance: Low internal resistance for optimal energy output and efficiency.

Enhanced Safety: Built-in protection against overcharging, over-discharging, and short circuits.

Eco-Friendly: Free from hazardous heavy metals like lead and cadmium, making it environmentally safe.

Technical Specifications

Model: 32140

Nominal Voltage: 3.2V

Nominal Capacity: 15Ah (15000mAh)

Charge Voltage: 3.65V

Discharge Cut-off Voltage: 2.0V

Cycle Life: >2000 cycles (80% DOD)

Max Charge Current: 1C (15A)

Max Discharge Current: 2C (30A)

Pulse Discharge Current: 4C 10Sec (45A)

Dimensions: 32mm x 140mm

Weight: Approximately 300g

Applications

The CHAM 15Ah 32140 LiFePO4 cell is widely used in various high-performance applications:

Electric Vehicles (EVs) & E-Bikes

Provides stable and high-energy output for electric bicycles, scooters, and lightweight EVs.

Renewable Energy & Solar Power Storage

Perfect for solar power storage systems, off-grid setups, and home battery banks, ensuring reliable backup power for renewable energy projects.

Industrial & Commercial Power Solutions

Ideal for UPS systems, backup power, and industrial-grade energy storage solutions.

Power Tools & Custom Battery Packs

Delivers consistent power output, making it suitable for cordless drills, electric screwdrivers, and industrial machinery.

Why Choose CHAM LiFePO4 CELL 3.2V 15Ah 32140?

Optimized for Energy Storage & EV Applications: Long-lasting and efficient for demanding energy solutions.

Exceptional Safety: LiFePO4 chemistry ensures thermal stability, no explosion risk, and minimal self-discharge.

Superior Cycle Life: Outperforms conventional lithium-ion batteries, reducing replacement costs.

Eco-Friendly & Sustainable: 100% recyclable and compliant
